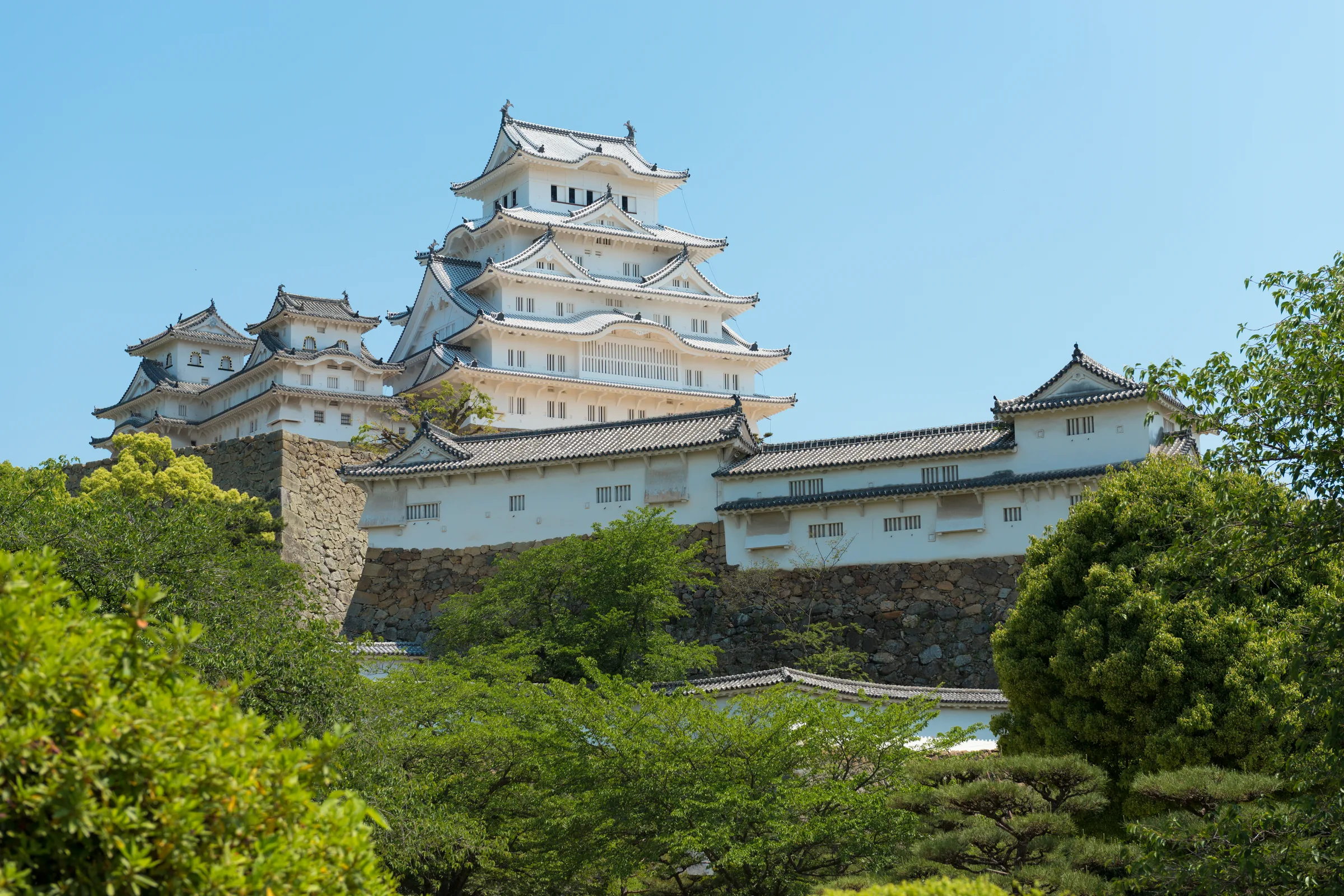

The multi-storey keep is a timber frame; loose joinery dissipates earthquake energy without breaking.CC BY-SA 4.0

c. 1609 CE · Himeji, Hyōgo, Japan

Himeji Castle: the timber anti-seismic structure

Share

A six-storey timber frame with mud-plaster walls; loose joints and central pillars dissipate seismic energy in a defensive structure.

The castle in the city of Himeji, Japan, earns the nickname "white heron" from its white-plastered exterior; but its architectural importance lies less in its appearance than in the logic of building tall in timber within an earthquake zone.

The main keep (tenshu), six storeys in appearance, is entirely a timber frame system. Two great central pillars running through the building act as a spine carrying the load to the ground; the surrounding timber framing is filled with clay and plaster to form walls that protect against both fire and shot but are not load-bearing. The critical point is the joint detail: instead of being rigidly nailed, the timber members are connected by joinery with a deliberate looseness. During an earthquake these joints move slightly, dissipating the energy of the shaking without breaking — a traditional counterpart to the flexibility principle of modern seismic design.

The castle is also a defensive device: a structure that looks like a single mass from outside has inside a deceptive, turning route that narrows as it rises; hidden floors ("kakushi"), firing slots, and a spiral approach slow the attacker and give the defender the advantage. Himeji is thus a mature example showing that timber — with the right joinery and spine logic — can be a building material at once tall, earthquake-resistant, and defensible.
