The steel frame was factory-made and assembled on schedule; the building rose like a flow line, on average 4.5 floors a day.Public domain

1930 – 1931 CE · New York City, USA

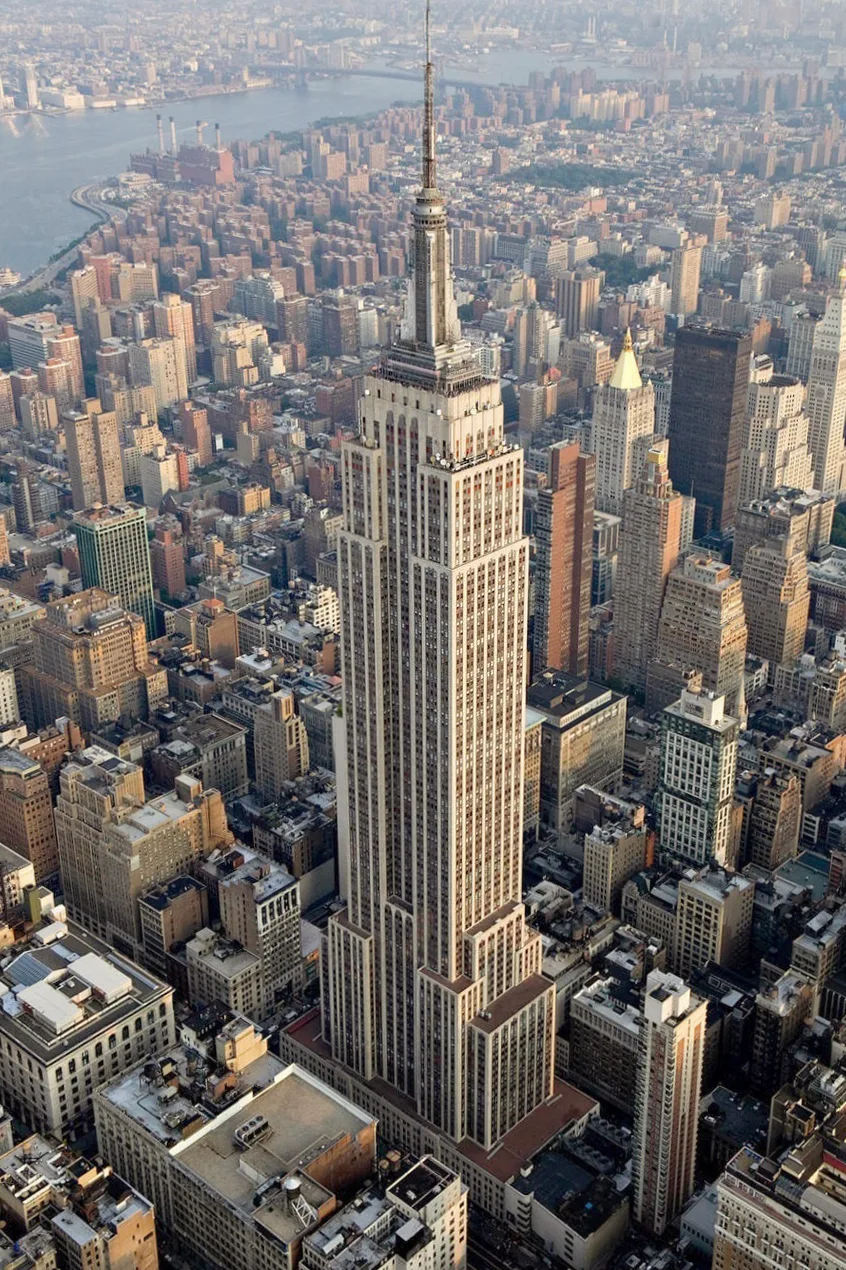

Empire State Building: the speed of the steel frame

Share

102 storeys in 410 days; on average 4.5 floors a day. The logistical summit of the steel-frame industry and assembly-line logic.

The Empire State Building in New York carries the steel-frame principle — the idea born at the Home Insurance Building — to the summit of industrial speed and logistics. The 102-storey structure rose in about 410 days, on average 4.5 floors a day; on completion it was the world's tallest building, a record it held for forty years.

The secret of this speed was to conceive the building not as a construction but as an assembly process. Some 57,000 tonnes of steel beams and columns were cut and numbered in factories, brought to the site on a programmed schedule by truck and train, and riveted into place almost straight off the furnace — the site was not a store but a flow line. As the riveting crews climbed floor by floor, flooring, services, and facade work advanced simultaneously just below them. This is proof that a building can be raised with the logic of mass production — parallel, scheduled, repeating steps.

The structure continues the steel frame of earlier skyscrapers: the load is entirely in the internal steel frame, and the outer Art Deco stone-and-metal cladding is only an envelope. But the Empire State's real lesson is not structure but process: by orchestrating material supply, labour, and assembly like clockwork, the scale of the vertical building is solved as a logistics problem. The Empire State Building is thus a symbol of modern construction management and the assembly-line skyscraper.
